Design for Compliance. Achieve "First-Time-Right" Manufacturing.
Introducing IPC Standards-Based Advanced DFM Profiles
What if every engineer could apply IPC Standards exactly the same way—automatically, during design? IPC Standards-based Advanced DFM Profiles transform design and manufacturability guidance into standardized, machine-readable engineering rules that integrate directly into digital workflows, making industry knowledge actionable where and when engineers need it most.
The Challenge?
Many organizations still rely on proprietary DFM rules or perform manufacturability checks too late in the design process. The result is unnecessary design iterations, production delays, increased costs, and inconsistent interpretation of industry requirements.
The Solution.
Advanced IPC DFM Profiles bring standardized, industry-backed manufacturability validation directly into the design workflow, allowing engineering teams to identify issues before designs reach manufacturing. Embedded guidance reduces iterations, improves collaboration, and accelerates product development.
What Are Advanced IPC DFM Profiles?
Advanced IPC DFM Profiles transform requirements from 12 Global Electronics Association design standards into standardized manufacturability profiles that can be integrated into Design for Manufacturing (DFM) software platforms.
DFM profiles are derived from the design requirements and recommendations of IPC-2141, IPC-2152, IPC-222X, IPC-601X, and IPC-735X standards. Line and space values reflect industry averages from Association research. Profiles cover rigid, flex, HDI, microvia, high copper weights, and high layer counts.
Instead of relying on custom rule sets or individual interpretation, engineering teams can validate PCB layouts against trusted industry requirements throughout the design process.
Supporting multiple IPC Performance Classes and Producibility Levels, the profiles help align design intent with manufacturing requirements across the electronics value chain.

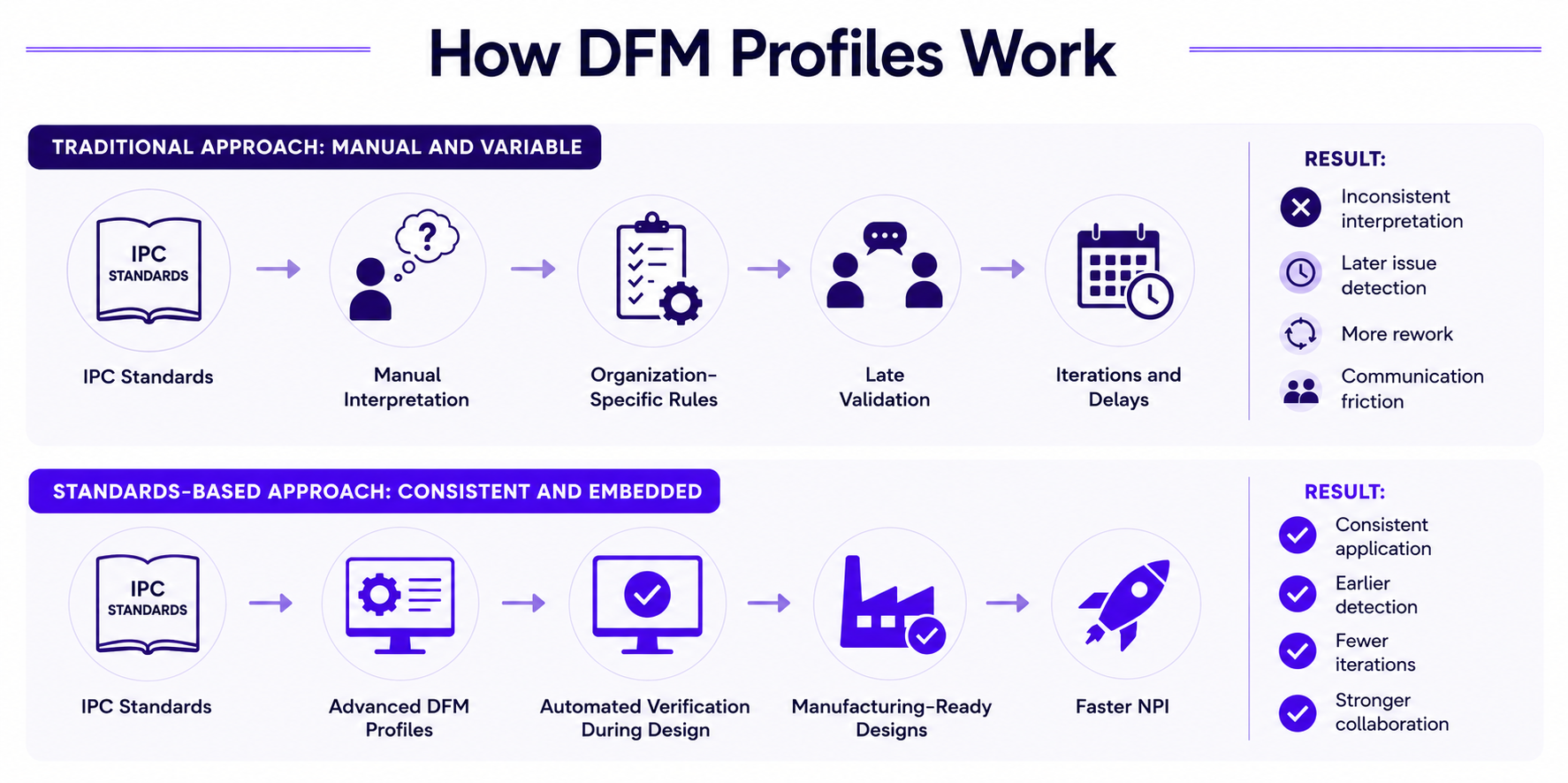

Why Standardized DFM Matters
One of the biggest challenges in electronics manufacturing is inconsistency.
Different organizations often create their own DFM rule sets, leading to varying interpretations of manufacturability requirements.
Advanced IPC DFM Profiles provide a common, industry-backed foundation built from established Global Electronics Association standards, helping organizations validate designs against consistent requirements while improving collaboration across OEMs, ODMs, EMS providers, PCB fabricators, and design partners.
Reduce PCB Re-Spins
Identify manufacturability issues earlier to minimize redesigns and accelerate product development.
Bridge Design & Manufacturing
Align design intent with manufacturing capabilities before production begins.
Design for Compliance
Validate designs against trusted IPC requirements instead of proprietary rule sets.
Accelerate Time to Market
Reduce costly delays by resolving manufacturability issues earlier in the development cycle.

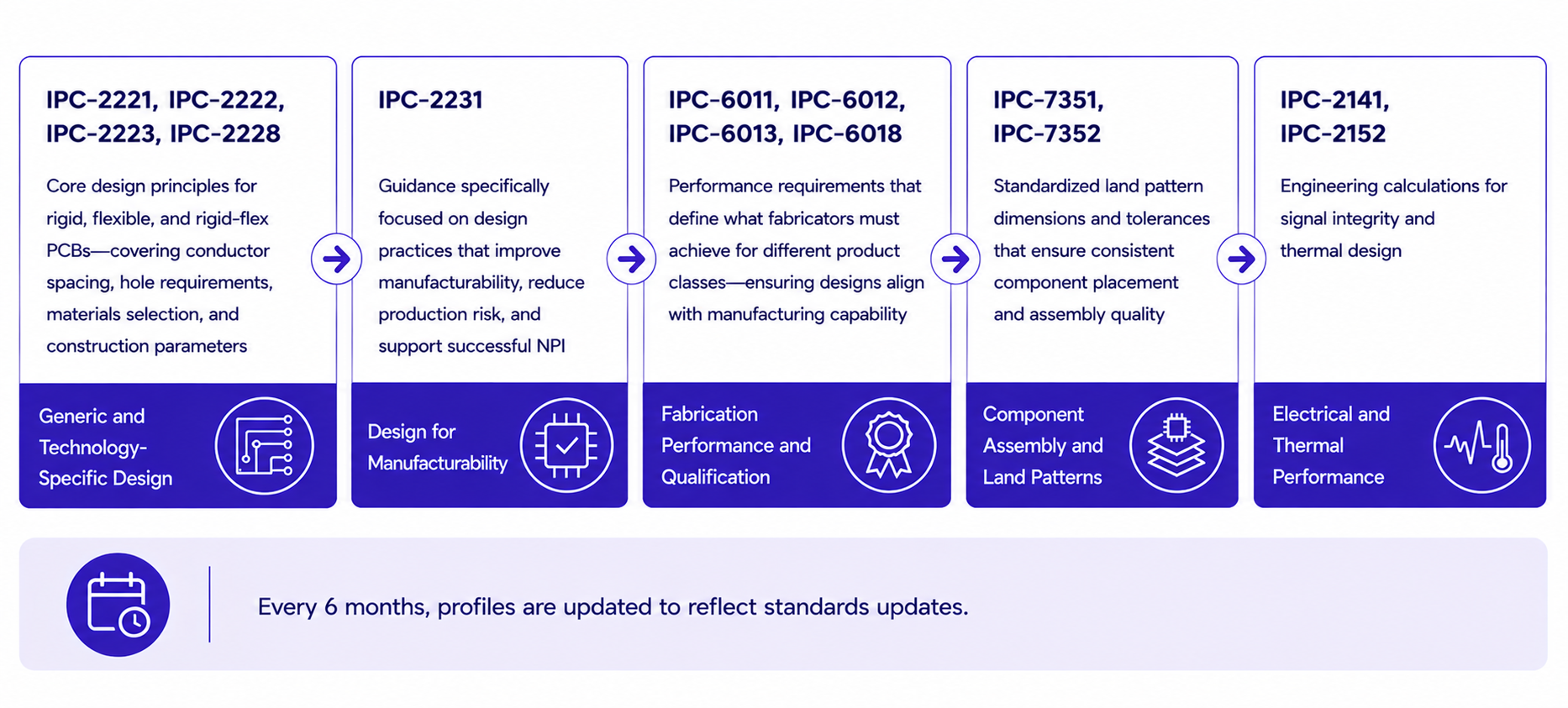

Built from Trusted Industry Standards
Advanced IPC DFM Profiles are built from requirements across multiple Global Electronics Association design standards, including:
The profiles also support validation toward IPC-A-600 and IPC-A-610 acceptability requirements.
What DFM Profiles provide: The correct engineering values applied automatically during design and manufacturability analysis.
What IPC Standards provide: The complete technical documentation explaining how those values are determined, when to apply them, and the engineering principles behind them.
To learn more about or purchase the standards, visit shop.electronics.org.
Who Benefits?
Advanced DFM Profiles support collaboration across engineering organizations by helping designers, manufacturers, and suppliers work from a more consistent interpretation of IPC Standards.
PCB Designers
Design with greater confidence using standardized manufacturability guidance.
Hardware and Product Engineers
Reduce downstream engineering changes by identifying potential manufacturing issues earlier.
DFM & Manufacturing Engineers
Apply consistent engineering rules that better align design intent with manufacturing capability.
PCB Fabricators & EMS Providers
Improve communication with customers while reducing clarification cycles and manufacturability discussions.
Engineering Managers
Support repeatable design methodologies that improve engineering efficiency and accelerate product development.
Available Through Siemens Valor NPI
Advanced IPC DFM Profiles are currently available through Siemens Valor NPI Premium, allowing engineering teams to integrate standardized manufacturability validation directly into existing PCB design workflows. Valor NPI unlocks the complete profile feature set—including advanced rules, detailed reporting, and enterprise integration. For teams requiring comprehensive manufacturability analysis and full IPC Standards enforcement, Valor NPI delivers the complete Advanced Profile experience.
This partnership combines trusted Global Electronics Association standards with Siemens' industry-leading DFM software to help organizations move toward first-time-right manufacturing.
As more software platforms adopt DFM Profiles, you'll have greater choice in how you access IPC guidance within your preferred tools. We're working with software providers, standards committees, and engineers like you to expand access and ensure DFM Profiles address real-world engineering challenges throughout your product development lifecycle. To request this capability in your software tools or to provide feedback, contact us.
Design for Compliance—Not Interpretation.
Reduce PCB re-spins, improve manufacturability, and validate against trusted industry requirements with Advanced IPC DFM Profiles.
